Missing Middle Housing Part 6: The Waterbrooke

The Waterbrooke building that spans between Donald Street and Columbus Avenue at River Road is a great example of "missing middle housing" that is higher density, but at a human scale. The complex, c. 1989, wraps around a lush central courtyard reminiscent of the 1920-era precedents in places like Los Angeles and Europe. What makes the complex so unique is its mix of layouts that include townhouses, 2-storey units and units with their own front door to the street or courtyard. Each unit has some sort of outdoor space including patios, decks and rooftop terraces, plus they all have fireplaces. Some larger residences have a separate den or solarium. The homes are also quite large with the majority between 1,100 and 1,700 square feet. Below are the unit sizes from the marketing material.

Clarksmith originally started the project, but it was later taken over and marketed by another company.

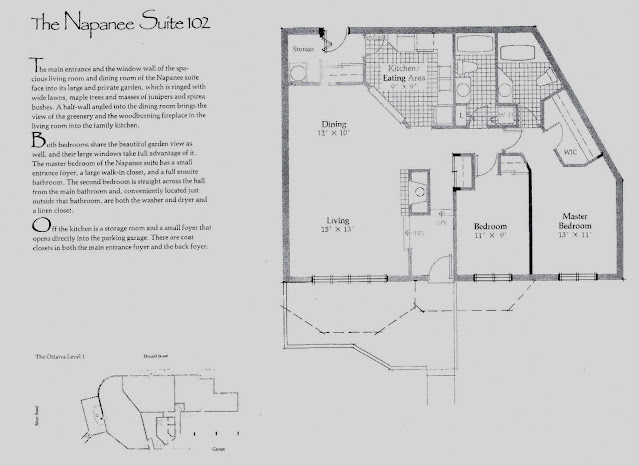

The original marketing material:

The marketing material after the project was taken over from Clarksmith:

The complex comprises 4 buildings, so I will describe each individually and then share the plans below.

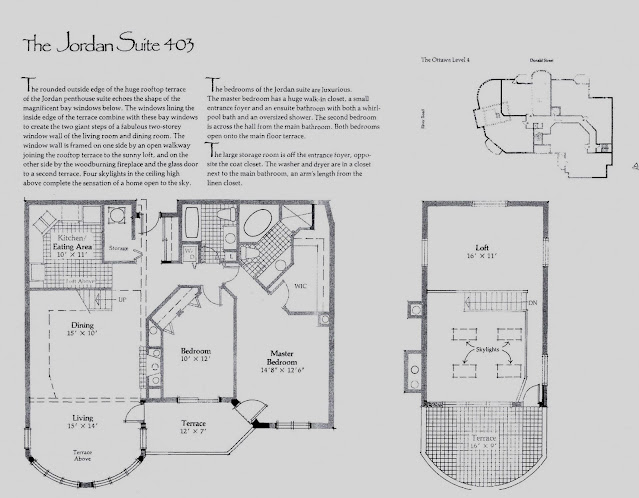

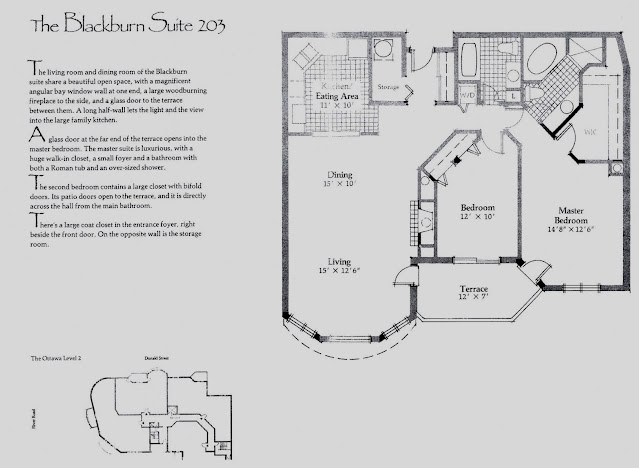

The Gatineau/Building A is at 62 Donald Street. On the street side the building the ground floor units are like townhouses with 2-story layouts. These units have a front door to the street and access to the parking garage from the rear of the units. The penthouse units on this side of the building have high ceilings and a loft space on the 2nd floor that opens to roof-top terraces. On the courtyard side, the building has 3 floors above ground and the ground level units have front doors onto the courtyard.

The Gatineau/Building B at 995 North River Road is on the left side of the main entry to the complex. The ground level bungalow-like units have separate entrances to the street with a back door directly to the parking. A number of the upper level residences have a second floor loft. The units at the front of the building are some of the largest in the complex with sprawling layouts embracing the curved facade. Only the "02" units have views of the courtyard.

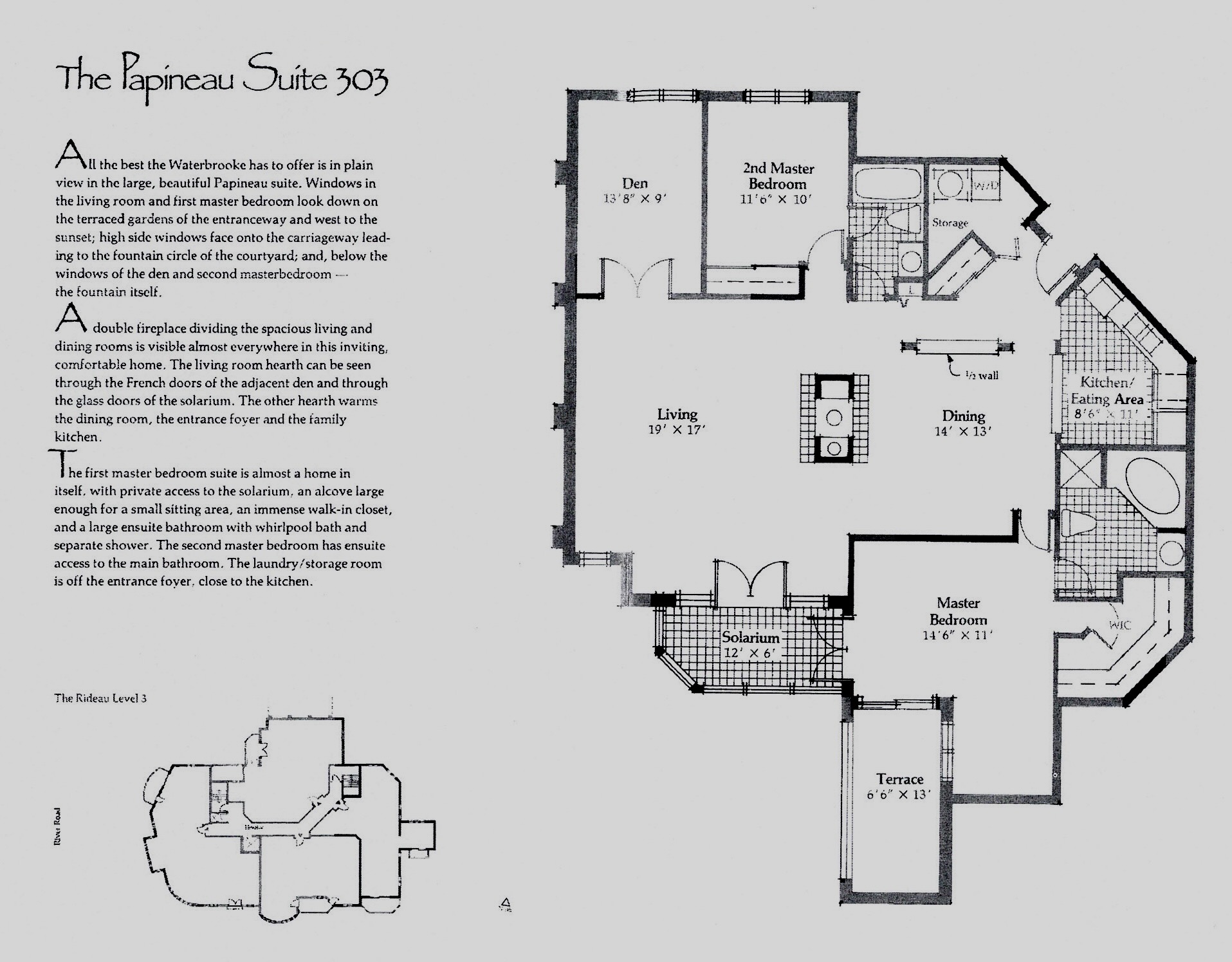

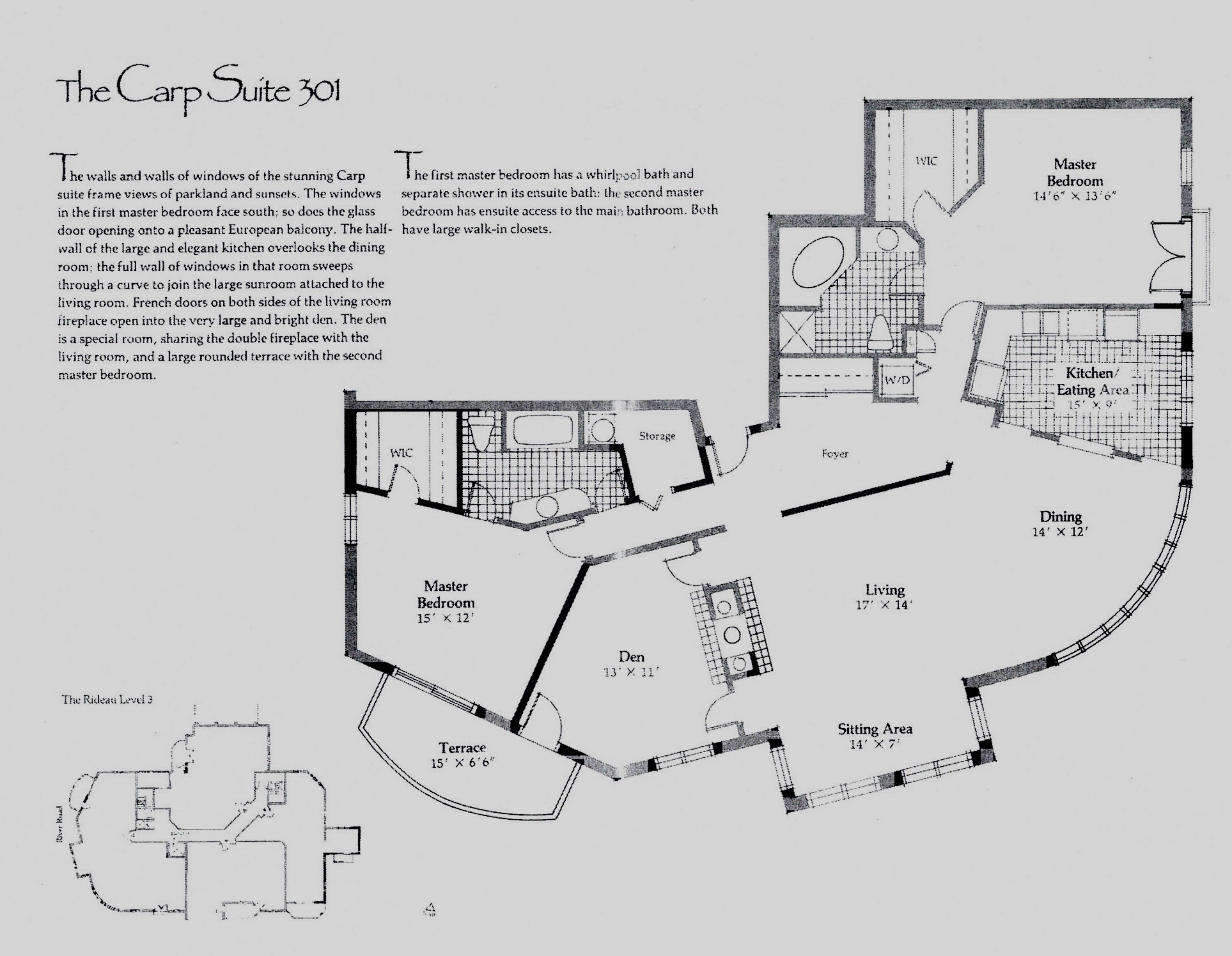

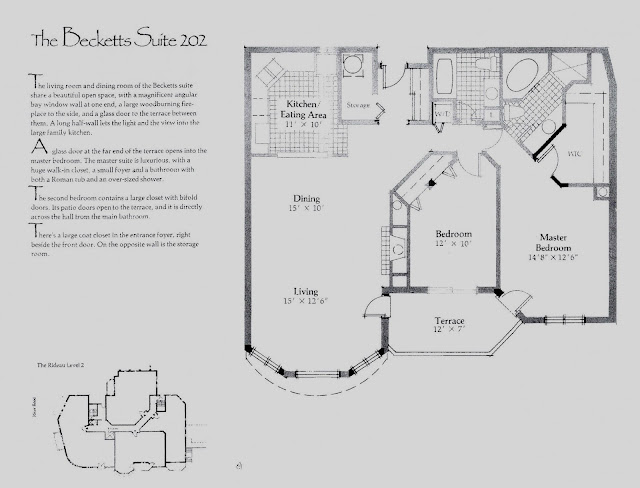

The Rideau/Building C at 997 North River Road is the right-side "bookend" on the front of the building. The units have similarities to those in the Ottawa building. A few units in the building include the "bridges" over the courtyard entries from North River Road and Columbus Avenue. The "03" and "04" units have views of the courtyard.

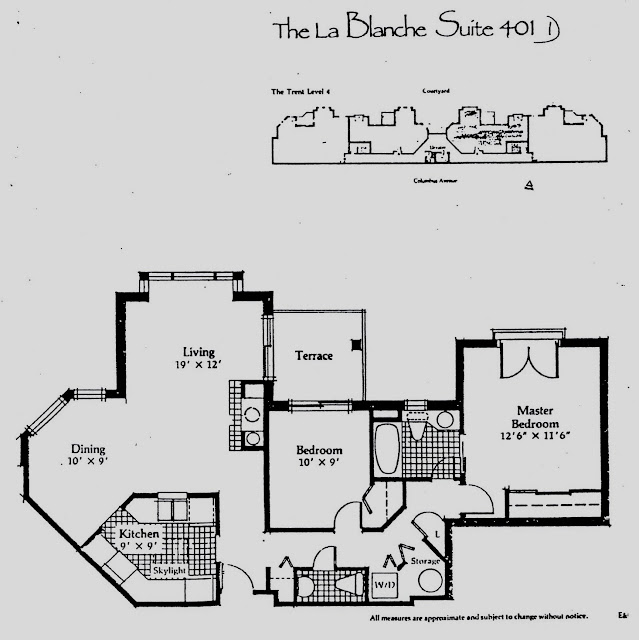

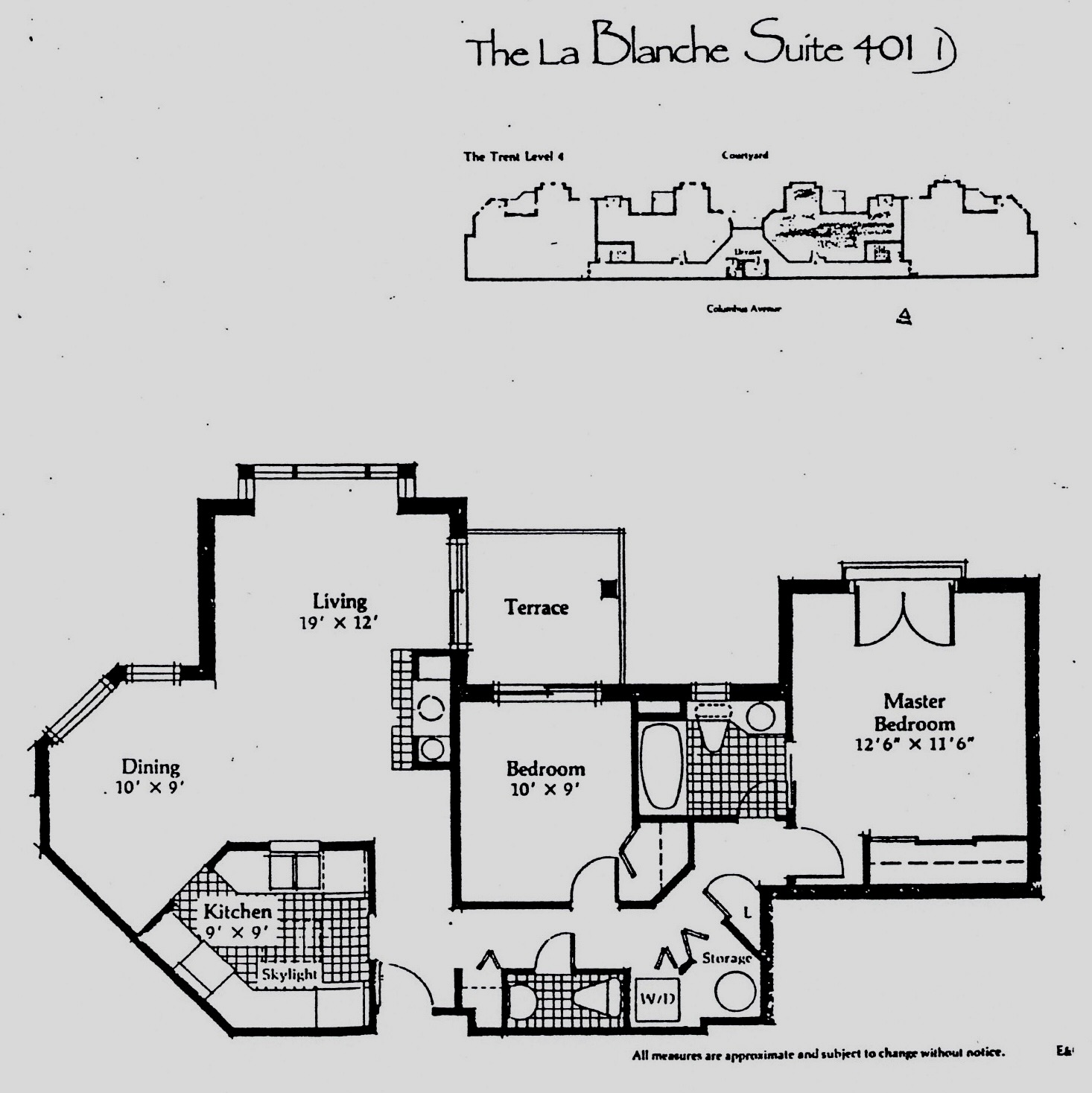

The 4th building of the complex has a unique layout comprising 4-level townhouses with private garages facing Columbus Avenue, and flats on the side facing the courtyard. The original marketing material refers to the courtyard units as "townhouses", but it appears that the design was updated with single level units instead.
