Idea File: California Dreaming in Ottawa

In addition to my collection of Ottawa and Toronto-area floor plans and housing ephemera, I also have boxes upon boxes of American plans and articles - with a particular interest in Californian housing.

Within this collection I have some favourite designs that I keep revisiting for inspiration, as I also design floor plans as a hobby (none have been built). Among my most cherished "inspiration" plans are those designed by the mid-century architect partners Robert E. Jones and Edwin K. Hom. Recently I discovered that some Ottawa houses may have been inspired by some townhouse designs by these architects. Here is what I have found:

A while ago I published a post on the Assaly Villas built in the 1960s and 1970s in Westcliffe Estates (Bell's Corners) and Trend Village: Assaly Villas. In these neighbourhoods a series of exterior styles for the houses were offered, including the "Spanish Valencia", shown below:

Many of the houses built with this exterior facade have been altered over the years, but the archway and balconies over the garage with curved details still remain in most cases.

Below is an advertisement from Time Magazine in 1965 showing houses built in San Juan Capistrano, California, designed by Robert E. Jones. Notice how the exteriors are strikingly similar.

The article below from House & Home Magazine in 1965 also shows the same houses - including the floor plans.

In terms of the layouts, the main floors of the two-story designs are very similar to those built in Ottawa, yet there are differences on the second levels. Of interest is the fact that both the California project and the Ottawa versions have 2-bedroom bungalow units (although the plans are not exact matches). Larger versions of the California designs are below:

Here are the Ottawa plans:

If there was any doubt that the designer of the Ottawa houses was influenced by American design, the Colonial Williamsburg (Virginia) elevation options are a sure giveaway.

As mentioned earlier, Robert E. Jones and Edwin K. Hom are some of my favourite tract-house architects, yet there is very little written about Jones and Hom. What I do know is that they were based out of La Jolla, California, and designed a handful of very unique projects, some of which were unbuilt.

In the interest of sharing their inspirational designs, I will veer away from Ottawa for a moment and present a collection of Jones and Hom plans from California:

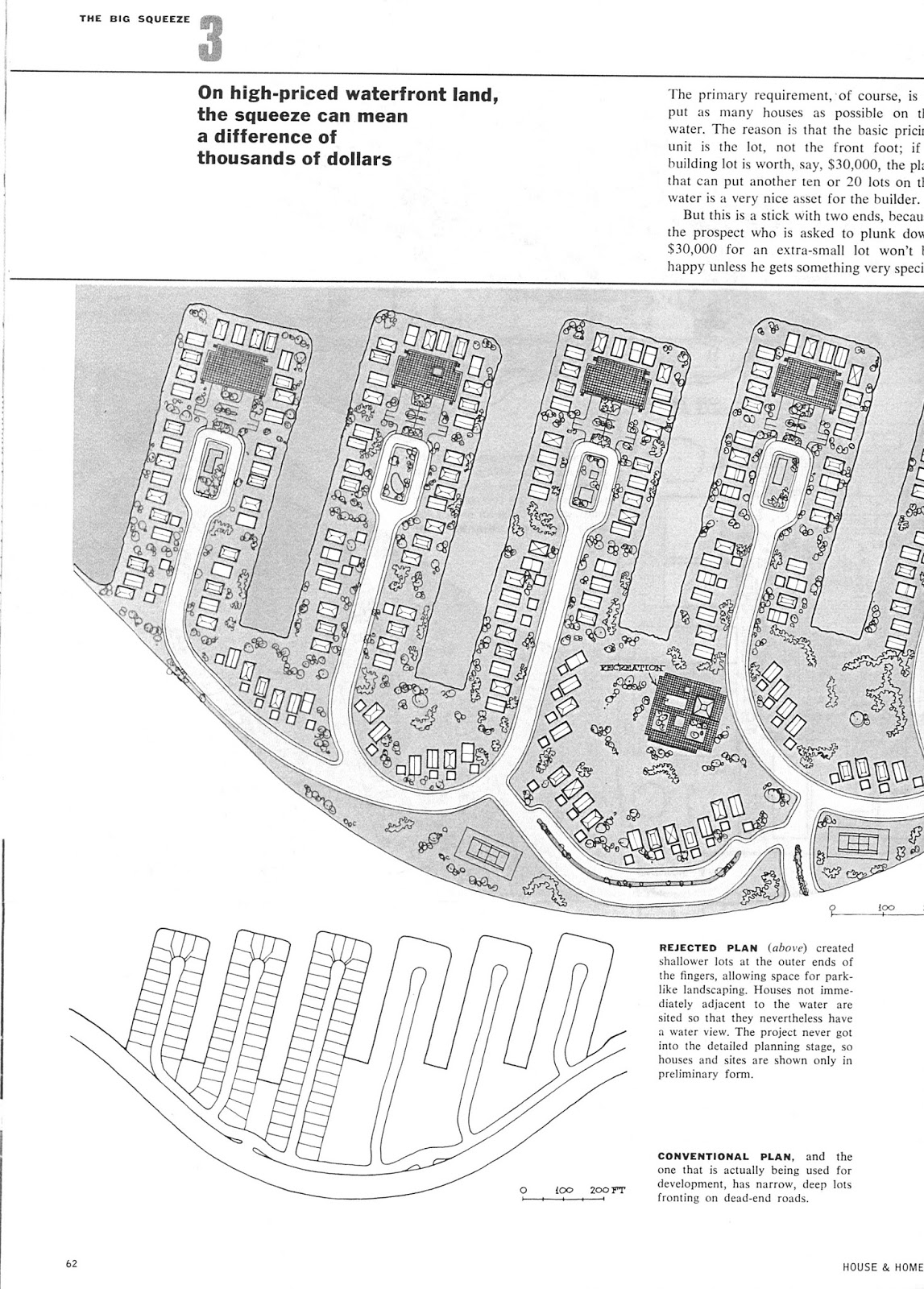

This design for Huntington Harbor was not built for some reason, and the land was developed with detached houses instead. Yet, the designs are intriguing and I love the architecture of the houses with walls of glass and steep roof lines. I wonder what happened to the scale model they built?

The designs for the unbuilt Huntington Harbor project above appear to have been altered for the Tennis Estates complex built south of the original site. This neighbourhood was actually built with some interesting waterfront townhouse designs.

House and Home, September 1974

I am a very big proponent of the zero lot line concept where houses are pushed up to one side of the lot, creating a larger side yard, instead of two narrow and often unusable side yards. This enhanced usability of a lot can be further expanded with the "patio house" concept by enclosing the whole yard - including the front yard - with a wall. Although not invented by Jones and Hom, they embraced the concept in Westlake Village. In some cases an enclosed yard would allow for a pool to be located at the front of a house.

House and Home, September 1967

Also in Westlake Village, this proposed design for waterfront houses was not actually built. I love the roof lines of the houses and the way they interact with each other. Hiding cars in an covered parkade is also an unusual idea.

The Shores development built in Monarch Beach has a collection of zero lot line houses including one that is pushed right up to the back of the lot. A trademark of Jones and Hom's designs are their use of steep or unusual roof lines to create a sense of weight and paired with large expanses of glass.

House and Home, May 1972

Another patio home project in Huntington Beach:

In Sunnyvale, Jones and Hom designed a series of award-winning houses called Bahl Patio Homes:

House and Home, October 1974

House and Home, August 1969

The Bahl Cluster Homes are fourplexes designed in a pinwheel layout:

House and Home, September 1972

Hopefully these designs from California will help fuel ideas and inspiration for any home renovation/design projects here in Ottawa!
