The Minto Bungalows of Beacon Hill North

By request (I do take requests!), this post is on the Minto bungalows that were built in Beacon Hill North. The neighbourhood is a mixture of houses built by both Campeau and Minto, but for the most part, the Minto houses were built in the area between La Verendrye and Olgilvie. These houses were predominantly built between 1968-1978 and some of these designs were also built in Beacon Hill South.

The Agincourt is one of the largest and widest Minto bungalows built in the area and the design won a Canadian Housing Design Council award in 1971. This design was built on the most northerly streets in Beacon Hill North.

The Bayview is a plan that has roots in the early 1960s and continued to be built for many years, suggesting that it was a best-selling design. There are two variations in the garage placement as shown above and below.

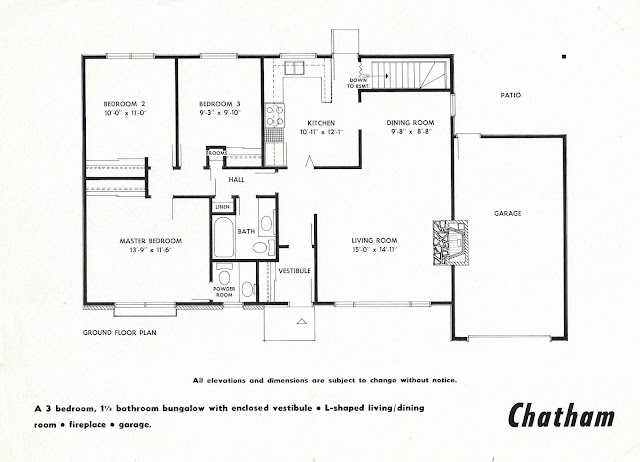

The Chatham and the Bayview are essentially the same plan with variations on the façade.

The Glenview is one of two Minto bungalow designs in the area with 4 bedrooms (the other is the Agincourt).

Designed to sit with the narrow edge towards the front of the lot, the Elgin is one of series of bungalow plans with this orientation. The Cavalier and Grenville designs further below are variations, but with an extended primary bedroom and optional garage. This is one of the smallest Minto bungalows in the area.

The gable end facing the front, asymmetrical chimney placement, and the wrap around windows all contribute to the Mid-Century Modern style of this design

The Grenville and the Cavalier have very slight variations in layout.

This design was not built as often as the other bungalows in the area. It is also one of the rare Minto bungalow designs with a family room.

The Sussex 1 is a variation with garage in front, perhaps for narrower lot widths.

The Whitby design is one of wider bungalow plans and was usually built on corner lots to accommodate the width.
